Shingles Studies

JIVE Pre-Oxidation Shingle Coating

JIVE is better than the competition and doesn't result in a shingle coating with poor weathering performance. Adding JIVE to asphalt before oxidation (also known as blowing), can improve the penetration while not reducing the softening point substantially.

JIVE's use as an additive appears to alter the chemical composition of the asphalt such that the penetration and softening point relationship changes in a favorable way. JIVE reduces the viscosity of the shingle coating, which can significantly improve plant processing.

Table 1: Properties of Original Flux and JIVE/flux blends Prior to Oxidation

JIVE was added to asphalt before oxidation at different concentrations (0%, 1%, and 3%) to evaluate softening point, penetration, flash point, and viscosity. With the addition of JIVE, the softening point is decreased, but the penetration is increased. The flashpoint is not measurably changed with 1% inclusion, but 3% decreases the flashpoint from 590°F to 580°F. The addition of JIVE also favorably reduces the viscosity of the blends.

PropertiesTest Methods% Jive Inclusion (% w/w)
0%1%3%
Softening Point,°FASTM D36110108102.5
Penetration, dmm - 4°CASTM D54355115
Penetration, dmm - 25°CASTM D5140181280
Flash Point, COC, °FASTM D92590590580
Absolute Viscosity, P - 60°CASTM D2171582457319

Table 2: Effect of JIVE Addition to Asphalt Exposed to Oxidation

JIVE was added to asphalt at different percent inclusions (0%, 1%, and 3%) and then exposed to oxidation. See table 2, as well as figures 1 and 2. The softening point and penetration of the blends were evaluated over oxidation time. Oxidation was ceased once a target softening point of 210oF or higher was achieved. The softening point and penetration relationship appear to shift favorably at four hours of oxidation for 1% inclusion and three hours of oxidation for 3% inclusion. With JIVE inclusions in early oxidation time, the softening point results in greater than 3% reduction for every 1% JIVE inclusion and a 17% or greater increase in penetration for every 1% JIVE inclusion. However, at the optimal oxidation time for 1% JIVE inclusion, the softening point is increased by ~2%, and the penetration is increased by ~5%. 3% JIVE inclusion increases softening point by ~0.1% and increases the penetration by ~11%.

% Jive Inclusion (% w/w)
Time (hrs)0%1%3%
TEMP (°F)SP (°F)PEN 77°F (dmm)TEMP (°F)SP (°F)PEN 77°F (dmm)TEMP (°F)SP (°F)PEN 77°F (dmm)
1.049814530500131.25149313270
1.5490171.621500144.335492139.840
2.049018720498155.428490163.126
2.5499196.518498168.225498182.320
3.05002101250017820491210.817
3.5---497187.518---
4.0---50021514---

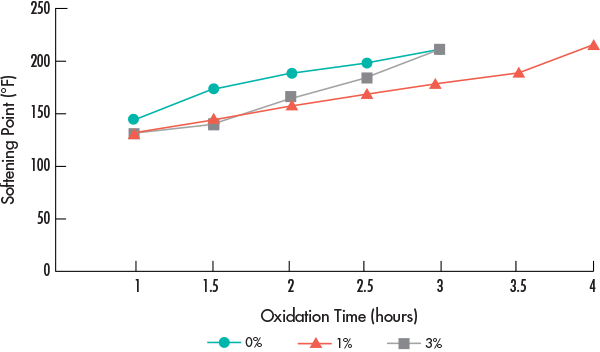

Figure 1: Effect of JIVE Addition on Softening Point to Asphalt Exposed to Oxidation

The starting softening point of JIVE inclusions start lower but is increased over oxidation time. After four hours of oxidation, the 1% inclusion reaches a softening point similar to that as the 0% at three hours. A similar result is observed with 3% inclusion at three hours.

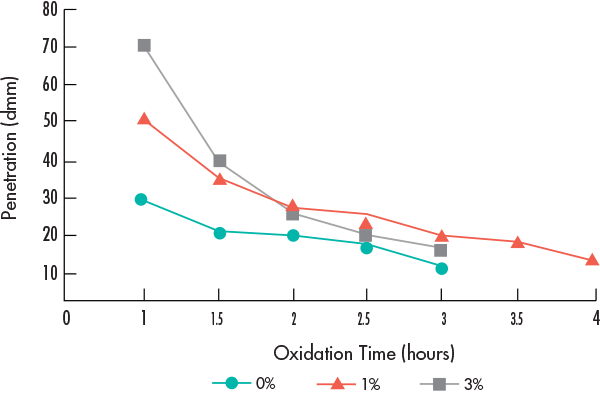

Figure 2: Effect of JIVE Addition on Penetration to Asphalt Exposed to Oxidation

JIVE was added to asphalt at different concentrations (0%, 1%, and 3%) and exposed to oxidation. The starting penetration of the JIVE inclusions start higher but is decreased over oxidation time. After four hours of oxidation, the 1% inclusion maintains a higher penetration value to that of the 0% inclusion. A slightly higher penetration value is observed with the 3% inclusion at three hours compared to 1% after four hours.

Table 3: Properties of Final Shingle Coatings after Optimal Oxidation Time

Properties of the shingle coatings produced at various JIVE concentrations (0%, 1%, and 3%) in asphalt exposed to oxidation are shown in table 3. Tested properties include softening point, ductility, flash point, solubility, cold temperature Mandrel Bend, viscosity profile, and stain index. Results indicate multiple benefits of JIVE inclusion, most notably a higher penetration value with similar softening point and lower EVT.

PropertiesASTM Test MethodsASTM D312 Specs% Jive Inclusion (% w/w)
0%1%3%
Softening Point (°F)D36210-225210215210.8
0°C6min.101011
4°CD5Report81112
25°C25-Dec121417
Ductility (cm) - 25°CD1131.5 min.333
Flash Point COC (°F)D92575 min.>590590585
Solubility TCE (%)D204299.0 min.99.9799.9999.95
Cold Temperature Mandrel Bend (°C)D5147Report252525
Viscosity Profile (Pa-s), unfilled - 375°FUse to determine EVT at 125 cP and 75 cP1.2650.6550.41
Viscosity Profile (Pa-s), unfilled - 400°FUse to determine EVT at 125 cP and 75 cP0.580.4250.265
Viscosity Profile (Pa-s), unfilled - 425°FD4402Use to determine EVT at 125 cP and 75 cP0.350.3150.155
EVT at 125 cP (°F)455 max.433450430
EVT at 75 cP (°F)485 max.436457439
Stain IndexD2746Report000

Figure 3: Weatherometer Mass Loss Results of Shingle Coatings

Panels generated from shingle coating produced at 0%, 1%, and 3% addition of JIVE before oxidation were exposed to accelerated weathering by Xenon Arc Weatherometer according to ASTM G155 for 3000 hours. Results indicated no pinholes or cracks in any of the samples, but an approximate 14.9% reduction in mass loss for 1% and 13.1% reduction for 3% JIVE containing shingle coatings. The average of two panels is shown for each sample type.
